Digitalni multimetri

Digitalni multimetri za mjerenje električnih veličina u raznim područjima elektrotehnike i elektronike možete pronaći u našoj ponudi. Svi multimetri imaju vrlo pregledan display i sadrže korisnički orijentisano polje. Digitalni multimetri se koriste uglavnom u školama, industriji i obrtu.
Ovdje ćete naći modele sa manualnim ili automatskim odabirom područja, sa i bez RS 232 – sučelja za prijenos podataka na PC. Isporuka sadrži mjerne vezice a neki uređaji imaju i temperaturni senzor tip K u svom standardnom priboru. Digitalni multimetri mogu biti isporučeni i sa ISO-certifikatom (opcija). U ponudi imamo veliki broj multimetara tako da nas slobodno kontaktirajte. Nazovite nas za detaljnije informacije na: +387 32 650 745

PCE-PDM 1

Za očitavanje napona s jednom rukom, Cat III 600 V, Dioda test

Mjerno područje : 400,0 mV
Rezolucija : 0,1 mV
Tačnost : ± (0,8 % + 2 dgt)

Uz uređaj se isporučuje: 1 x Krokodilklemme, 1 x Messspitzenverlängerung
4 x Baterije LR44 (2 kom. u uređaju, 2 kom.rezervna),1 x rezervni osigurač, uputstvo.

Opcionalno: ISO certifikat o kalibraciji.

PCE-SF 1

Satelit tragač uključujući funkciju multimetra.

Multimeter
Satellitenfinder

Multimetar PCE-DM 12

autom. Bereichswahl, 600 V, 10 A, 40 MΩ, 10 MHz, +760 °C

Messbereiche : DCV / ACV DCA / ACA

Uz uređaj se isporučuje i:1 x senzor za temperaturu (vanjska sonda), 1 Testleitung, 1 x Baterije, Uputstvo. Opcionalno uz ovaj uređaj možete naručiti i senzore za pritisak, brzinu vjetra, buku, lux, kao i ISO certifikat o kalibraciji

Digitalni multimetar PCE-DM 22

Multimeter, termometer, memoriše 32.000 jedinica

Opseg: 1000VDC, 750 VAC
Funkcija: otpor, frekvencija,…
Uz uređaj isporučujemo: kablovi, RS-232 kabal, software, senzor za temp. k-tip, baterije, uputstvo, futrolu

Opcionalno možete naručiti mnoge senzore kao i ISO certifikat o kalibraciji

Digitalni multimetar PCE-UT 61 D

TrueRMS, RS-232 , Max/Min-vrijednosti

TRMS-Mjerenje
Veliki LCD-Display
IEC 61010: CAT III 1000 V, CAT IV 600 V

Uz uređaj isporučujemo i:1 setTestleitung, 1 x Software, 1 x Baterije, Uputstvo.

Opcionalno možete naručiti veći broj adaptera, senzora kao i ISO certifikat o kalibraciji

Digitalni multimetar PCE-UT803

Digitalni multimetar PC-interfejs

Učestalost : 2-3 / s
Biper : ako padne ispod 30 Ohm
Diodentest : bis 2,7 V/ 1 mA
Interfejs : USB i RS-232

Uz digitalni multimetar isporučujemo: 2 x Krokodil kleme velike, 2 x Krokodil kleme male, 1 x Senzor za temp. (K-Typ), 1 x Utikač, 1 x Baterije, 1 x Kabal za napajanje, 1 x USB-Kabel, 1 x RS-232-Kabel, 1 x Software, Uputstvo

Opcionalno možete naručiti razne adaptere i senzore kao i ISO certifikat o kalibraciji.

Digitalni multimetar PCE-DC 3

Digitalni mini ampermetar 2/80 A AC/DC visoke rezolucije

3 2/3-znamenkasti LCD-display
pozadinsko osvjetljenje
AC / DC struja do 80 A
Funkcija zadržavanja mjerne vrijednosti
DCA nuliranje
Beskontaktni ispitivač napona
Integrisana džepna lampica
Automatski odabir područja
Automatsko samoisključenje
Otvor kliješta: 18 mm

Opcionalno možete naručiti i ISO certifikat o kalibraciji.

Digitalni multimetar PKT-2155

LCR- / ESR-Multimetar, RS-232 interfejs

Funkcije: Z, Ls, Lp, Cs, Cp, DCR, ESR, D, Q, 0
Uklj.: Software, Datenkabel, Uputstvo
Opcionalno: ISO certifikat o kalibraciji

Digitalni multimetar Metrahit Outdoor

Otporan na prašinu i vodu IP65, mjerenje temperature sa PT-100, memorija

Za detaljnije informacije kontaktirajte nas na telefon +387 32 650 745

Tehničke karakteristike Metrahit Outdoor:

METRAHIT_OUTDOOR.pdf

pdf, 272.2K, 06/06/11, 8 downloads

Digitalni multimetar Metrahit Extra

TRMS digitalni multimetar, 16 A, napon: 1000 V, automatsko blokiranje utičnice, 26 funkcija mjerenja

Tehničke karakteristike:

METRAHIT_EXTRA.pdf

pdf, 277.8K, 06/06/11, 12 downloads

Digitalni multimetar Metrahit Energy

Mrežni analizator i mjerač snage, s automatskim blokiranjem utičnice, mjerenje temperature

METRAHIT_ENERGY.pdf

pdf, 895.7K, 06/06/11, 11 downloads

Digitalni multimetar Metrahit Multical

Kalibrator i multimetar u jednom okviru / memorija / Dual mode za simultani prijenos i mjerenje

METRAHIT_MULTICAL.pdf

pdf, 140.9K, 06/06/11, 8 downloads

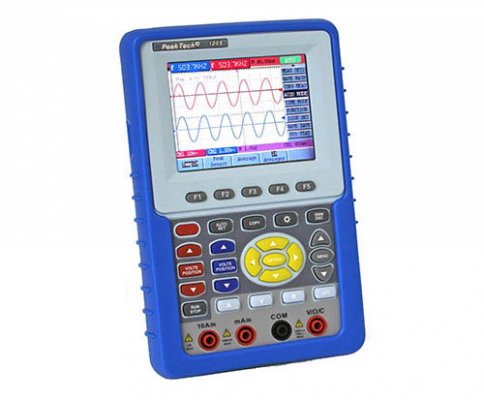

Digitalni osciloskop PKT-1195 i PKT-1205

Osciloskop s funkcijom multimetra, 20 MHz, 2 kanala, USB interface

PeakTech_1195_1205-1.pdf

pdf, 1.6M, 06/09/11, 7 downloads

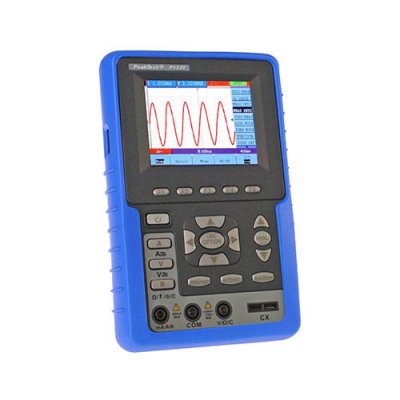

Ručni osciloskop multimetar PKT-1220

1-kanalni osciloskop sa multimetrom, 20MHz, USB interface

PeakTech_1220.pdf

pdf, 1.2M, 06/09/11, 6 downloads

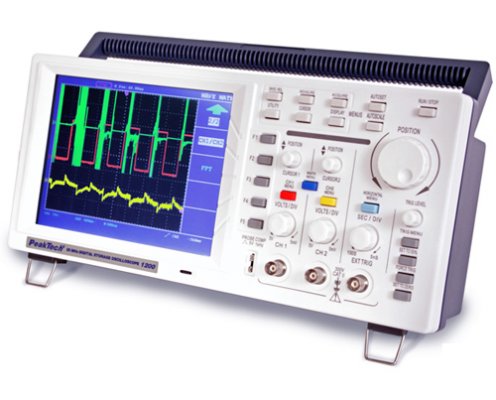

Osciloskop PKT-1200

Stoni osciloskop 8” display u boji, 25 MHz , USB-Interface, Auto-Set-funkcija

25 MHz digital storage oscilloscope of the latest generation with LCD-color display, high resolution, backlight and USB function benefits faster and larger data communication. It provides versatile applications for education, training centers, repair and maintenance and satisfies increasing needs of higher performance and reliability at an affordable price.

five automatic measurement functions, storage and call-out of waveforms
automatic setting function provided capable of fast setting, multiple-waveform calculation function
autoscale-function
implementation of detecting the average and peak values of the waveform
edge and video triggering functions
Safety: EN-61010-1/CAT II
Accessories: 2 pcs. BNC-cable, USB cable, software CD for Windows 2000/XP and VISTA, power cable, 2 probes and manual
Optional Accessories: accu pack 7,4 V ~ 8000 mA, modell AKKU 1

Vertical system
bandwidth	25 MHz
display	20 cm/8” colour LCD-display (640 x 480 Pixel)
sensitivity	5 mV/div. … 5 V/div.
input impedance	1 MΩ ± 2,0 % / 20 pF ± 5 pF
max. input voltage	300 V DC or ACpp
DC accuracy	± 5 %
input coupling	DC, AC
rise time	14 ns
Horizontal system
time base range	5 ns/div. – 5 s/div.
Trigger
trigger mode	AUTO, NORM, SINGLE
trigger coupling	DC, AC, LF-RJ, HF-RJ
Measurement function
automatic measurements	peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A-B (rising), delay A-B (falling), frequency, period, mean
Cursor	voltage and time difference
operation voltage	100 ~ 240 V AC rms; 50/60 Hz
dimensions (WxHxD)	350 x 157 x 103 mm
weight	1 kg

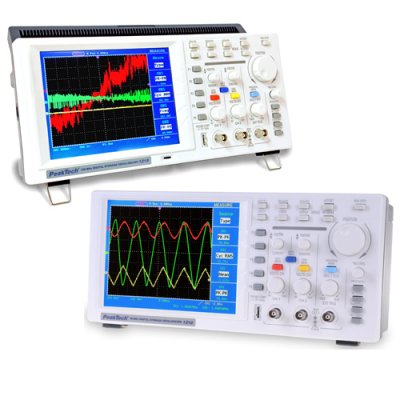

Osciloskop PKT-1210 i 1215

dvokanalno osciloskopi s velikim display-om u boji, max. 100 MHz, visoka učestalost uzorkovanja

PKT-1210_1215.pdf

pdf, 1.4M, 06/09/11, 7 downloads

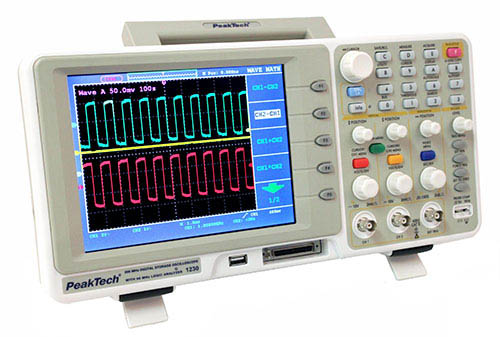

Osciloskop PKT-1230

Osciloskop sa memorijom i sa integrisanim 16-kanalnim Logik Analysator-om, 200 MHz , 1 GS/s.

200 MHz Digital storage oscilloscope of the latest generation with 16 CH logic analyzer and 8”-TFT- color display, high resolution, with backlight and USB function benefits faster and larger data communication. The current electronic products become more complicated as the number of digital circuits and serial bus systems increase; the testing signal often mixes analog and digital signals, so the engineer needs a test instrument, that could test both of analog and digital signals. Provides versatile applications for educations, training centers, repair and maintenance and satisfies increasing needs of higher performance.

save data directly to an USB-stick
200 MHz bandwidth
1 GS/s sampling rate per each channel
Logic Analyzer with 16 input channels
20 automatic measurement functions
FFT measurement function
max. 2,000,000 points record length for each channel
dual channels + external trigger + logic analyzer
support USB data transmission, display by real-time
advanced trigger functions: edge trigger, bus trigger, pattern trigger, sequential queue trigger, distributed queue trigger and data width trigger
autoscale-function, supports automatic setting of waveform and data detecting
Safety: EN 61010-1 : 2001; CAT II
Accessories: 2 pcs. BNC cable, USB cable, software CD for Windows 2000/XP/VISTA/7, power cable, logic probe, 2 pcs. oscilloscope probes and manual
Optional Accessories: accu pack 7.4 V ~ 8000 mA, model: AKKU 2

Technical data:

MEASUREMENT AQUISITION
bandwith:	200 MHz
display:	20 cm 8” TFT (640 x 480 Pixel)
channel:	2-CH + ext. Trigger + Logic-Analyzer
sample rate:	1 GS/s (real time) each channel
sampling mode:	normal, peak detection, average
VERTICAL SYSTEMS
sensitivity:	mV – 10 V/Skt/div
input impedance:	1 MΩ +/- 2 % in parallel with 15 pF +/- 3 pF
input voltage:	400 V DC or ACss/pp
input coupling:	DC/AC/GND
accuracy:	± 3 %
rise time:	< 1,7 ns
resolution A/D:	8 bits (2 CH simultaneously)
HORIZONTAL SYSTEMS
time base:	1 ns – 100 s/Skt/div.
TRIGGER
trigger mode:	edge, video, alternate
MEASUREMENTS
measurements:	peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B (rising), delay A→B (falling), frequency, period, mean
waveform:	Addition, Subtraktion, Multiplikation, Division, FFT
RECORD
record length:	max. 2000000 points (1 CH)
waveform storage:	4 waveforms
LOGIC ANALYZER
band width:	66 MHz
channels:	16
sample rate:	20S/s ~ 400 MS/s (real time)
input impedance:	1 MΩ +/- 2 %
input signal range:	± 15 V
threshold voltage:	± 10 V (4 settings)
trigger mode:	egde, bus, state, data alignment, Pattern trigger, data width trigger, sequ.queue trigger
trigger position setting:	pre, mid, re-trigger
setting storage:	10
data system:	binary-, decimal system, hex
digital filter:	0, 1, 2 opt.
GENERAL SPECIFICATIONS
operation voltage	100 ~ 240 V ACeff/rms / 50 Hz
dimensions (WxHxD)	370 x 180 x 120 mm
weight	2,2 kg

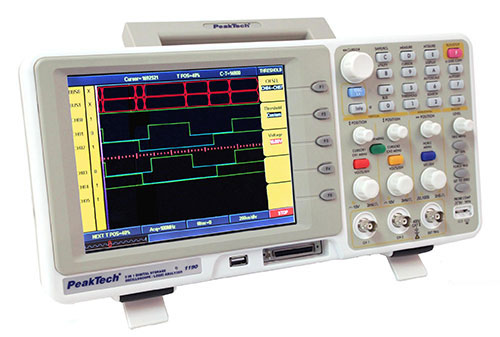

Osciloskop PKT-1190

Digitalni memorijski osciloskop sa 16-kanalnim Logik-Analysator-om, spremanje podataka direktno na USB

100 MHz Digital storage oscilloscope of the latest generation with 16 CH logic analyzer and 8”- TFT- color display, high resolution, backlight and USB function benefits faster and larger data communication. The current electronic products become more complicated as the number of digital circuits and serial bus systems increase; the testing signal often mixes analog and digital signals so the engineer needs an test instrument that could test both of analog and digital signals. Provides versatile applications for educations, training centers, repair and maintenance and satisfies increasing needs of higher performance.

save data directly to an USB-stick
100 MHz bandwidth
500 MS/s sampling rate per each channel
16 logic input channels
max. 6000 points record length for each channel
dual channels + external trigger + logic analyzer
support USB data transmission, display by real-time
advanced trigger functions: edge trigger, bus trigger, pattern trigger, sequential queue trigger, distributed queue trigger and data width trigger
autoscale-function, supports automatic setting of waveform- and data detecting
Safety: EN 61010-1 : 2001; CAT II
Accessories: 2 pcs. BNC cable, USB cable, software CD for Windows 2000/XP and VISTA, power cable, logic probe, 2 pcs. oscilloscope probes and manual

measurement aquisition
bandwith	100 MHz
display	20 cm 8” TFT (640 x 480 Pixel)
channel	2 CH + ext. Trigger + Logic-Analyzer
sample rate	500 MS/s (real time) each channel
sampling mode	normal, peak detection, average
vertical systems
vertical sensitivity	2 mV – 10 V/div
input impedance	1 MΩ ± 2 % in parallel with 15 pF ± 3 pF
max input voltage	400 V DC or ACpp
input coupling	DC/AC/GND
accuracy	± 3 %
rise time	< 3,5 ns
resolution A/D	8 bits (2 CH simultaneously)
horizontal systems
time base	5 ns – 100 s/div.
trigger
trigger mode	edge, video, alternate, mains supply
measurements
autom. measurements	peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A-B (rising), delay A-B (falling), frequency, period, mean
math. waveform	Addition, Subtraktion, inverted
record
record length	max. 6000 Punkte (1 CH)
waveform storage	4 waveforms
logic analyzer
band width	66 MHz
channels	16
sample rate	1S/s ~ 400 MS/s (real time)
input impedance	1 MΩ ± 2 %
input singal range	0 ~ 5 V
threshold voltage	0 ~ 4 V (4 /settings)
mode	gde, bus, state, data alignment, data width trigger
position setting	pre, mid, post
record length	4M/CH
setting storage	10
data system	binary-, decimal system, hex
Digital-Filter	0, 1, 2 opt.
general specifications
operation voltage	100 ~ 240 V ACrms / 50 Hz
dimensions (WxHxD)	370 x 180 x 120 mm
weight	2,1 kg
